Additional sizes might be available.

JML Henderson Ltd | SKU: 50475

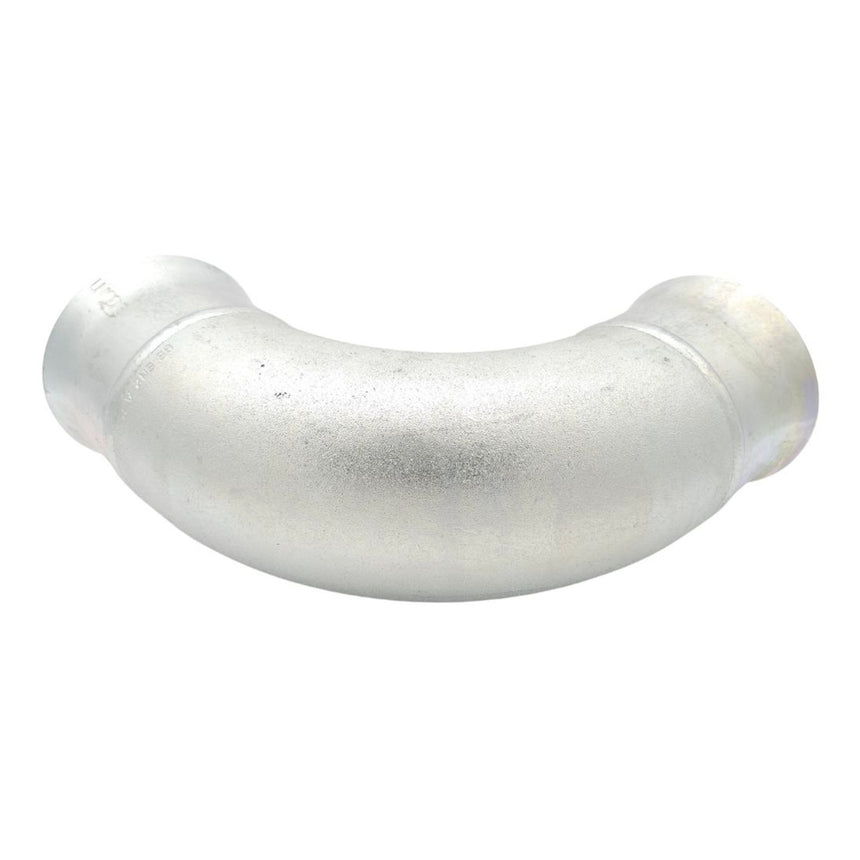

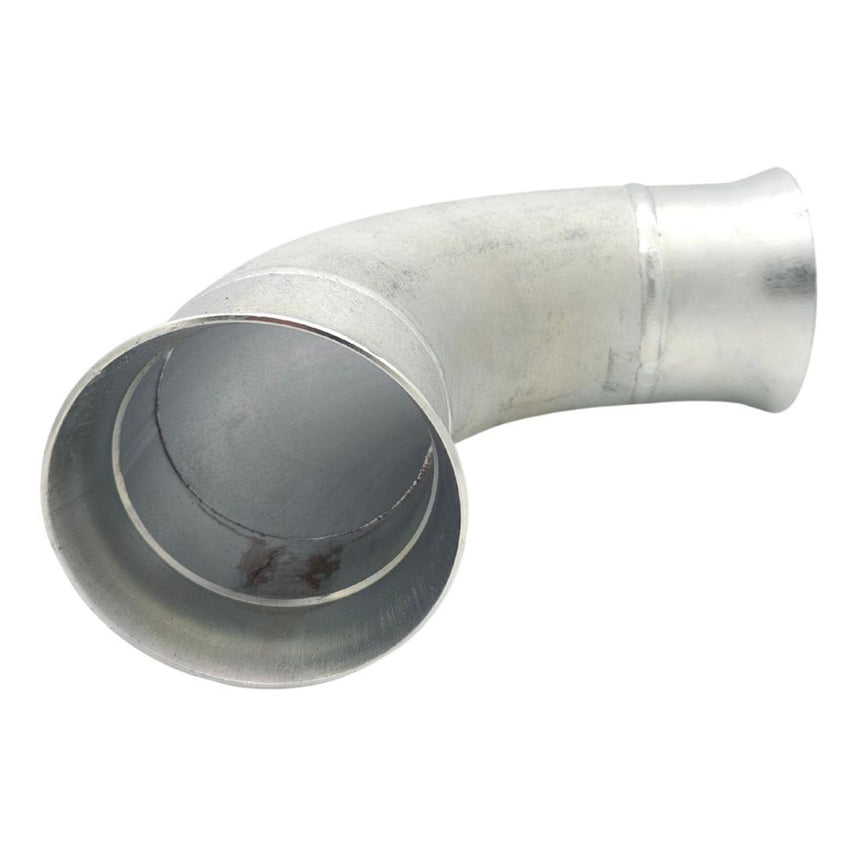

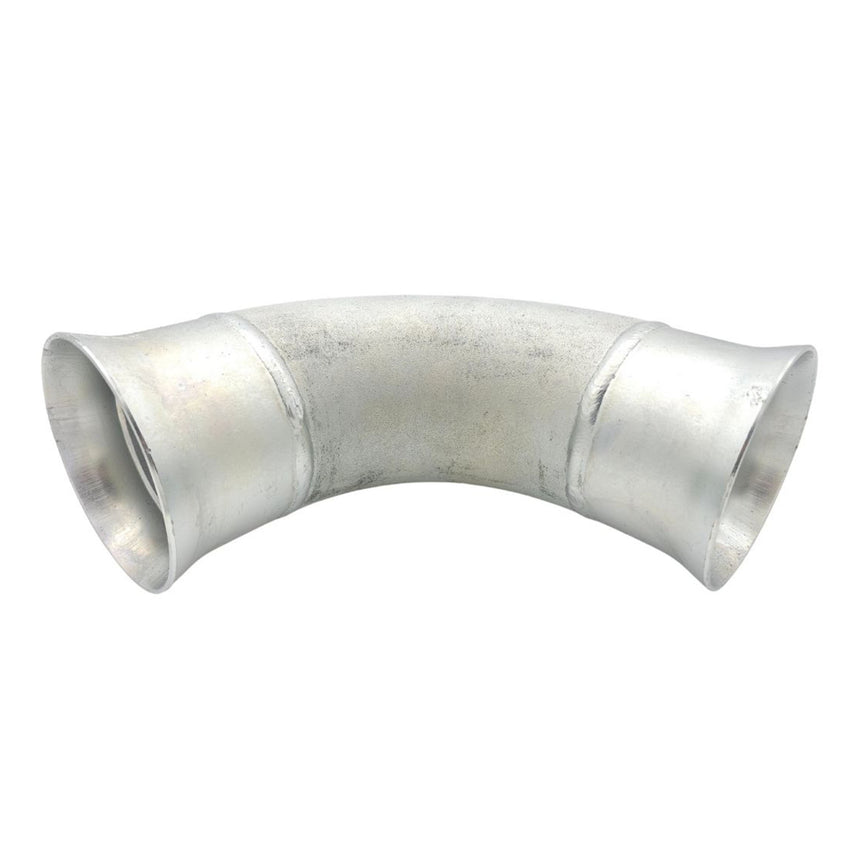

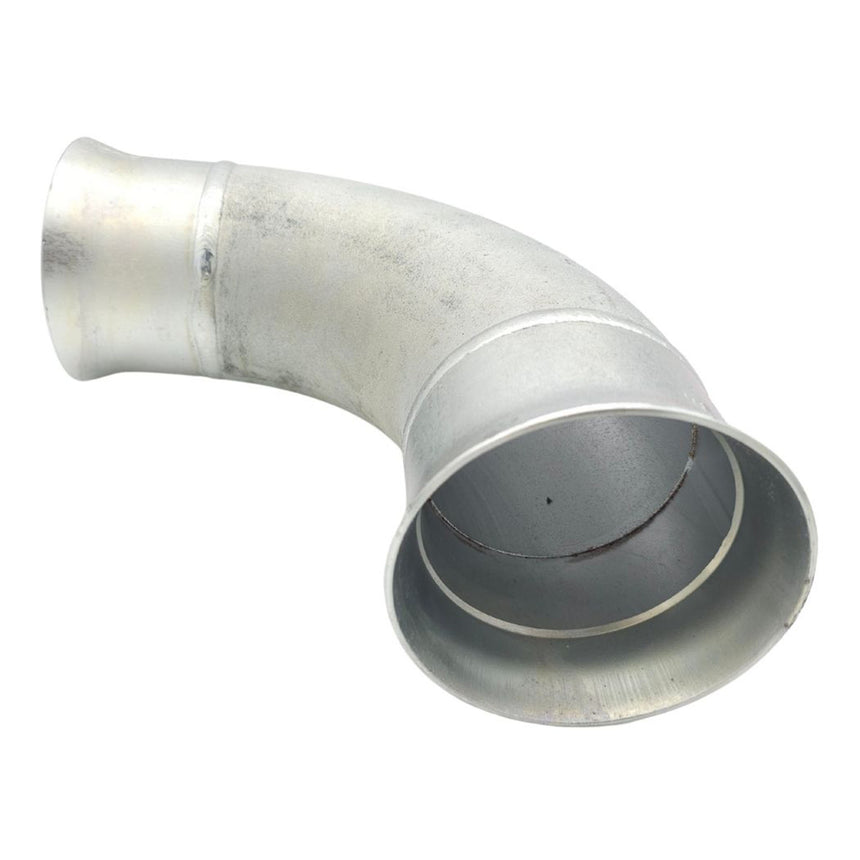

Unicone Coupling 90° Elbow (Mild Steel)

Size

Product variants

Get in Touch

If you prefer to speak to someone directly, you can reach us via phone during our business hours. Simply dial 01406 362978, and one of our knowledgeable representatives will be ready to assist you.

Alternatively you can send us your query or request to sales@jmlhenderson.co.uk, and we will respond to you as promptly as possible.

Delivery

When placing your order with us, rest assured that your items will be promptly shipped out using tracked, fastest-day delivery services. We prioritize efficient handling and secure shipping to ensure your package arrives swiftly and safely. Your satisfaction is our priority, and we strive to provide a seamless delivery experience from checkout to your doorstep.

FAQ

Have questions? Check out our FAQ page for more information on a wide range of topics, from shipping and returns to product details and customer service inquiries. Click here to visit our FAQ page and find answers to commonly asked questions: FAQ Page. We're here to help make your shopping experience as smooth as possible.

Description

The Unicone Coupling 90° Elbow (Mild Steel) is a crucial component designed to facilitate right-angle directional changes in fluid handling systems with high efficiency and reliability. Constructed from high-quality mild steel, this elbow fitting combines durability with cost-effectiveness, making it an ideal choice for applications in industries such as agriculture, firefighting, and certain industrial processes where moderate strength and affordability are key considerations. The 90-degree angle allows for smooth, precise redirection of fluid flow, minimizing turbulence and pressure loss within the system.

Mild steel is selected for its excellent balance of strength, ductility, and ease of fabrication, providing a robust yet adaptable solution for fluid transfer systems. This material is particularly advantageous in environments where the risk of severe corrosion is low, ensuring the fitting's longevity and consistent performance under typical operational conditions. The Unicone Coupling 90° Elbow's design ensures a tight, leak-proof connection when paired with compatible Unicone fittings, thereby maintaining the integrity and efficiency of the overall system.

This elbow fitting is engineered for straightforward installation and maintenance, reducing downtime and improving operational efficiency. Its reliable construction ensures that it can withstand the mechanical stresses associated with fluid transfer, making it a dependable choice for maintaining system integrity

Specifications

Product

Unicone
Type

Unicone Elbow
Size

4"
Connection 1

Flared End
Connection 2

Bend
Material Type

Mild Steel
Colour

Silver

Features & Benefits

Durable Mild Steel Construction: Crafted from high-quality mild steel, this 90° elbow offers durability and strength, suitable for withstanding demanding industrial environments while providing long-lasting performance.
Precision Engineering: Each elbow is engineered to precise specifications, ensuring a perfect fit and reliable performance, even in high-pressure and high-temperature applications.
90° Angle Design: The 90° angle design of the elbow allows for convenient directional changes in fluid flow, optimizing space utilization and facilitating smooth fluid transfer operations.
Universal Compatibility: Designed to fit Unicone Couplings, this 90° elbow offers versatility and ease of use across various fluid handling systems and applications.

Application

Bulk Material Handling: The Unicone system has been used for many years as the standard powder, granule, and pellet hose coupling. It is suitable for use with food products such as sugar and flour, plastic pellets, concrete, and animal feed pellets.
