ProFlow (Hybrid) PTFE Hoses

ProFlow PTFE hoses combine a smooth internal bore for maximum flow and easy cleaning with a convoluted external profile for exceptional flexibility. This hybrid design delivers the chemical resistance, cleanliness and temperature performance of PTFE while allowing a tighter bend radius than standard smoothbore hoses. Ideal for pharmaceutical, food and beverage, biotech, chemical and other demanding industrial processes.

View as

No products found

Interested in a Quote?

View Couplings & Fittings Collection, Hose Adapters at JML Henderson

Hose Couplings & Fittings

Hose couplings and fittings are essential components used to connect, adapt, or control the flow of fluid in various hose assemblies. These components can be found in a myriad of applications such as water supply, hydraulic systems, and industrial processes. Couplings come in different shapes, materials, and sizes - ranging from simple clamps and sleeves to more complex quick-connect or threaded fixtures.

View Clips & Clamps Collection, Hose Clamps at JML Henderson

Hose Clips & Clamps

Hose clips and clamps are mechanical devices specifically designed to secure hoses onto fittings, thereby preventing unwanted fluid leakage or detachment. These components are vital in various applications, such as automotive systems, industrial machinery, and plumbing. Made from materials like stainless steel, plastic, or even heavy-duty rubber, hose clips and clamps can range from simple wire forms to more elaborate quick-release or adjustable types.

Shop our Catalogue

Search

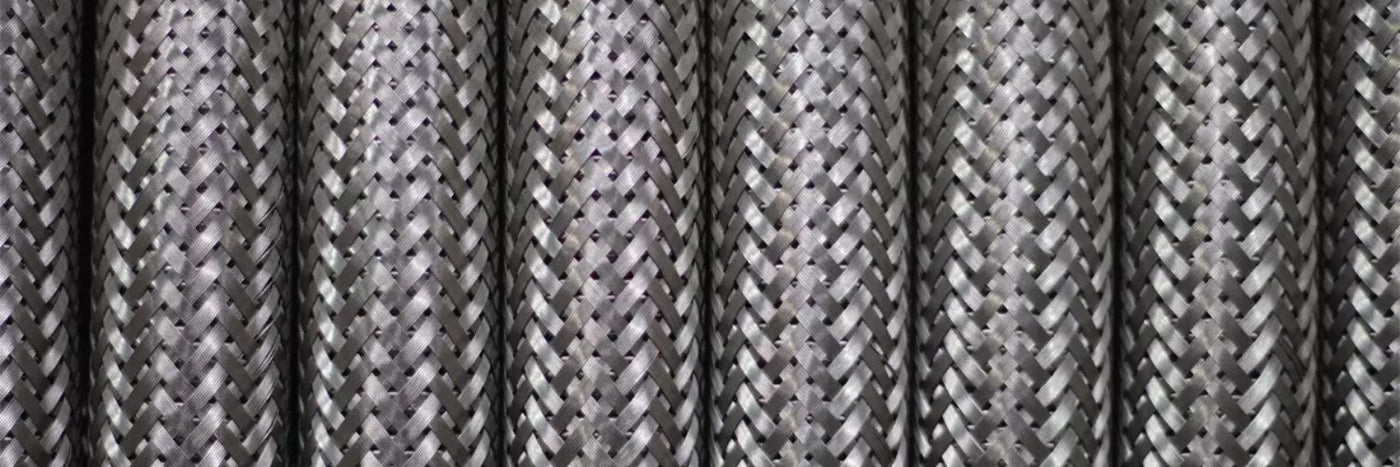

The ProFlow PTFE hose is a hybrid design with a smooth, non-stick PTFE spiral liner to maximise flow and reduce product build-up, combined with a convoluted external profile to deliver superior flexibility compared with standard smoothbore hoses. A 304 stainless steel braid reinforces the hose, providing strength, pressure capability and long service life even in dynamic or vibration-prone installations.

This construction makes ProFlow hoses ideal where high flow, easy cleaning and tight routing are all required, such as in pharmaceutical manufacturing, food and beverage processing, biotech systems, chemical transfer and other critical fluid handling industries.

ProFlow hoses can be supplied bare or assembled with a wide range of end fittings to match your system, including BSP/NPT threads, Tri-Clamp or sanitary connections, flanged ends and cam & groove couplings. Options such as anti-static (carbon-filled) liners, ATEX suitability and bespoke assemblies are available on request.

Key Features:

  • Hybrid design: Smooth internal bore for maximum flow and easy cleaning with a flexible convoluted exterior

  • Exceptional chemical resistance: Suitable for aggressive fluids and solvents

  • Non-stick, self-draining liner: Minimises product build-up and contamination risk

  • Wide temperature range: Reliable from -70°C up to +260°C

  • 304 stainless steel braid: High pressure capability with long flex life and vibration resistance

  • Food & pharmaceutical safe: Manufactured from FDA-compliant materials

  • ATEX & anti-static options: Carbon-filled PTFE liners available where static dissipation is required

  • Custom assemblies: Can be supplied bare or with BSP/NPT threads, flanges, Tri-Clamp/sanitary fittings, cam & groove couplings and other bespoke builds on request

  • Long service life: Durable construction minimises replacement costs and downtime
