Description

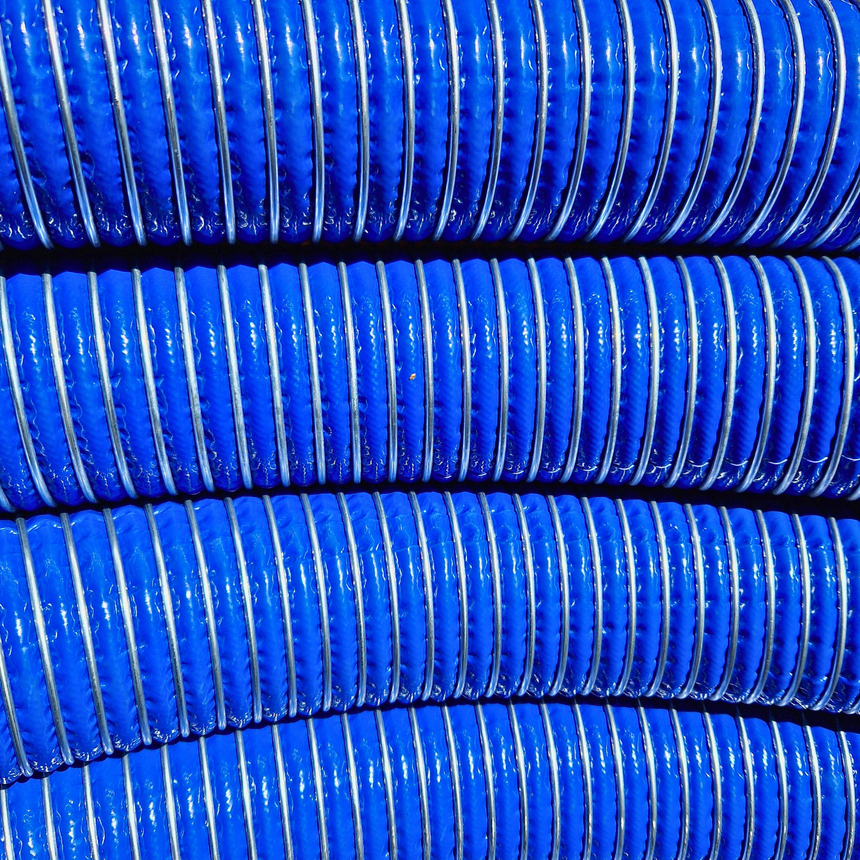

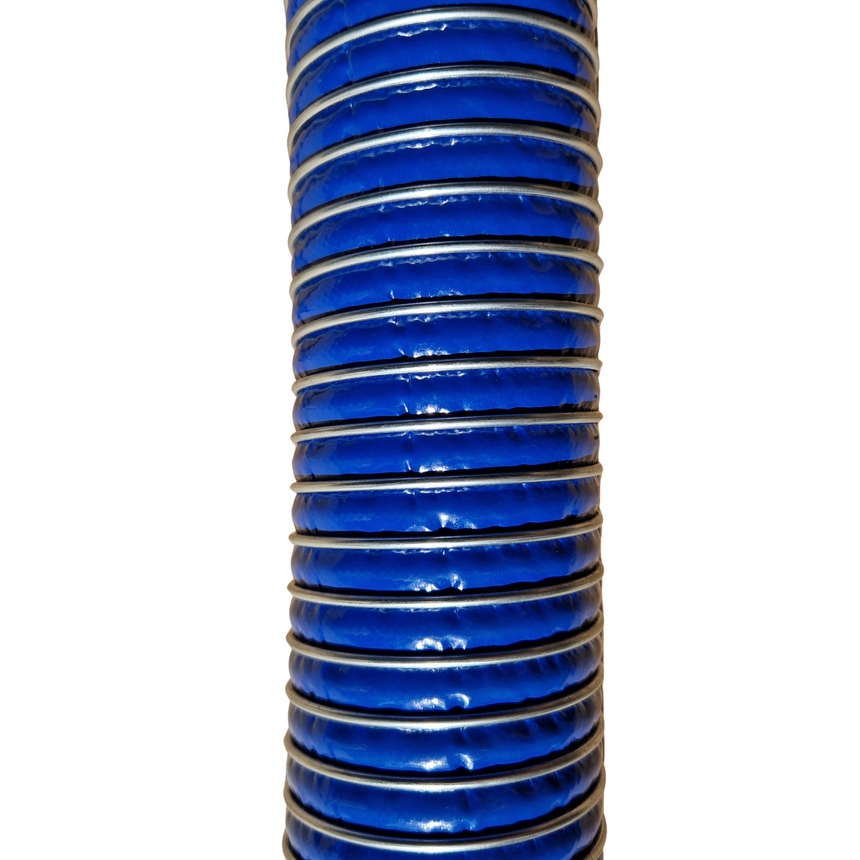

This flexible oil and fuel transfer hose is built for demanding industrial environments. It uses a multi-layer composite construction of polypropylene fabrics and films with a weather-resistant, abrasion-resistant blue outer cover. The hose is reinforced with galvanised internal and external wires for strength and safety.

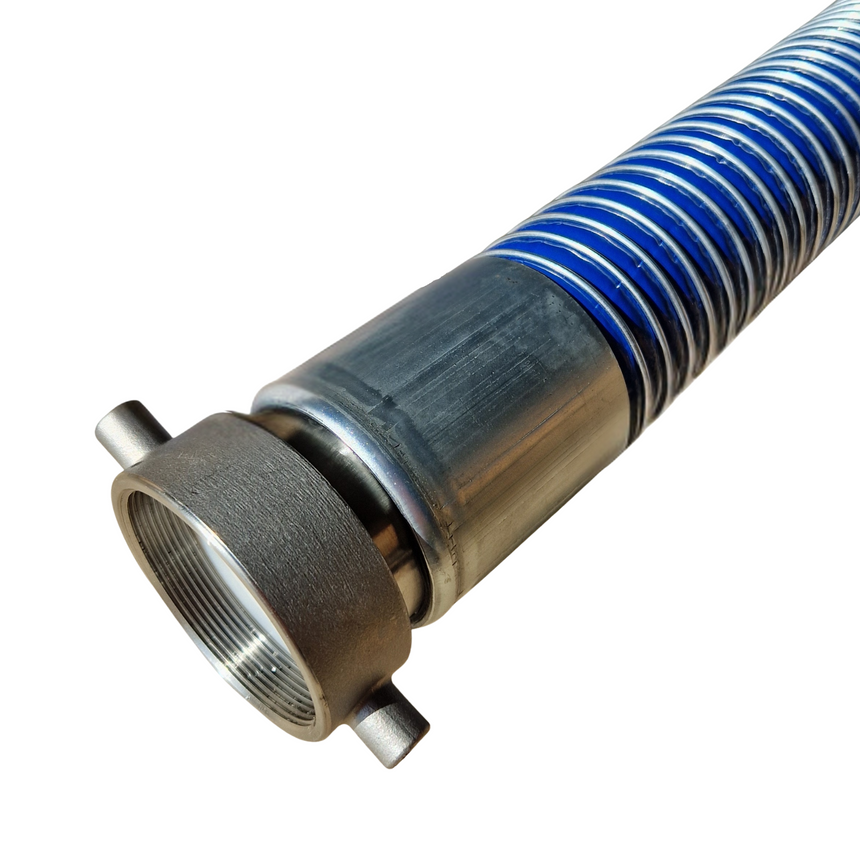

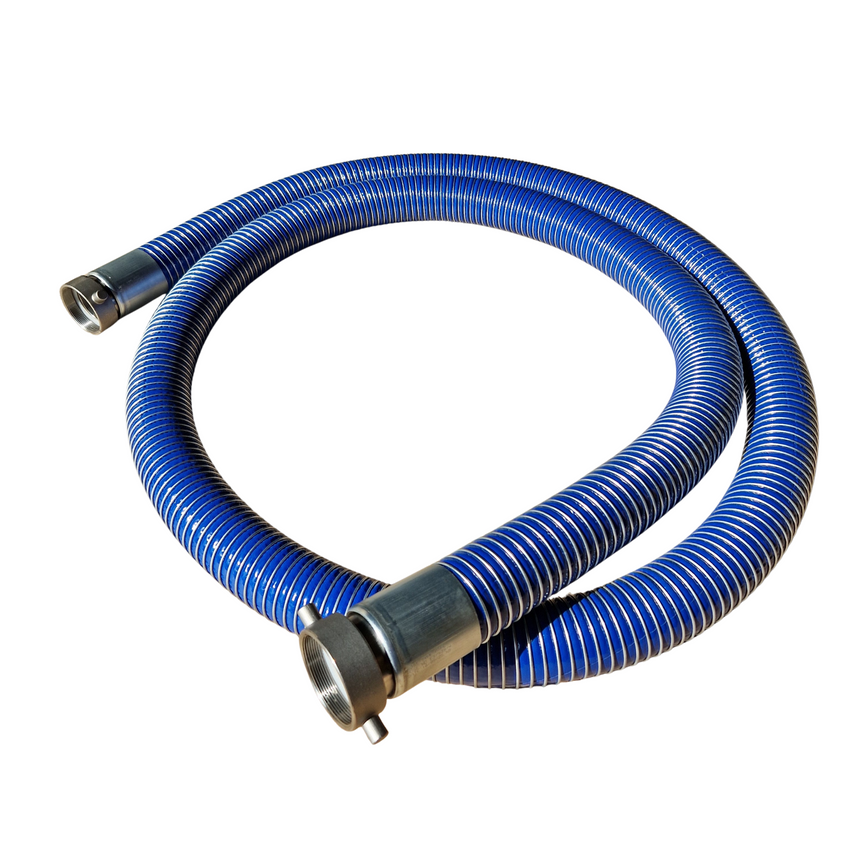

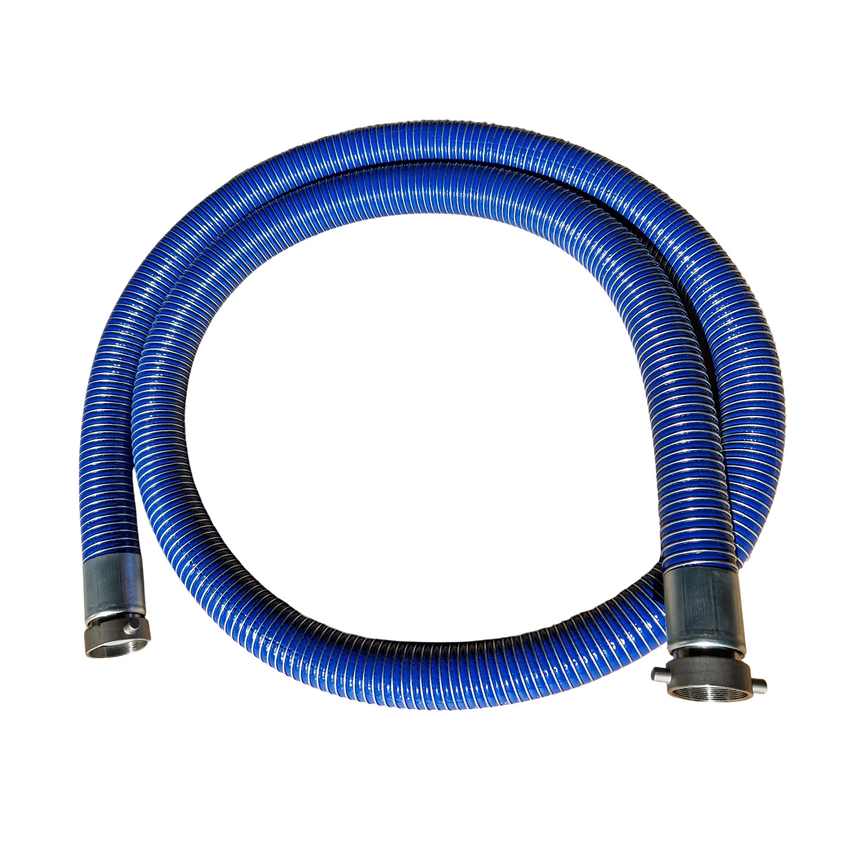

Supplied as standard with BSP female threaded ends for a secure, leak-resistant connection, this hose is ideal for road tanker loading and offloading or fixed plant installations where a robust, lightweight and reliable fuel or hydrocarbon transfer line is required.

(Stainless steel wire constructions can be supplied for specialist applications on request.)

Key Features:

  1. Durable composite build: Multi-layer polypropylene fabrics and films with galvanised internal and external wires for strength and chemical resistance.

  2. BSP female ends: Provide a secure, leak-resistant connection compatible with standard BSP fittings.

  3. Oil & fuel service: Suitable for petrol, diesel, lubricating oils, fuel oils and hydrocarbons with up to 100 % aromatic content.

  4. Pressure & length: Rated up to 10.5 bar (150 psi) working pressure. Available in any length up to 20m per coil with custom end fittings on request.

  5. Wide temperature range: Operates from -30°C to +80°C, covering most oil and fuel transfer duties.

  6. Abrasion and weather-resistant cover: Tough outer layer protects against wear and outdoor exposure.

  7. Special builds available: Stainless steel wire options for specialist or more aggressive applications.



Complies with BS 3492:1987 BX and EN 13765:2018 composite hose standards for oil and fuel transfer. Suitable for full vacuum suction and discharge service.

Specifications

  • Material
    Multi-layer polypropylene fabrics and films with galvanised internal and external wires
  • Temperature
    -30°C to +80°C
  • Colour
    Blue

Application

  • Suction and discharge transfer of petrol, diesel, lubricating oils, fuel oils and other hydrocarbons
  • Road tanker loading and offloading
  • Fixed plant installations requiring robust oil and fuel transfer hoses
  • Optional stainless steel wire builds for specialist or more aggressive media
